Product Overview

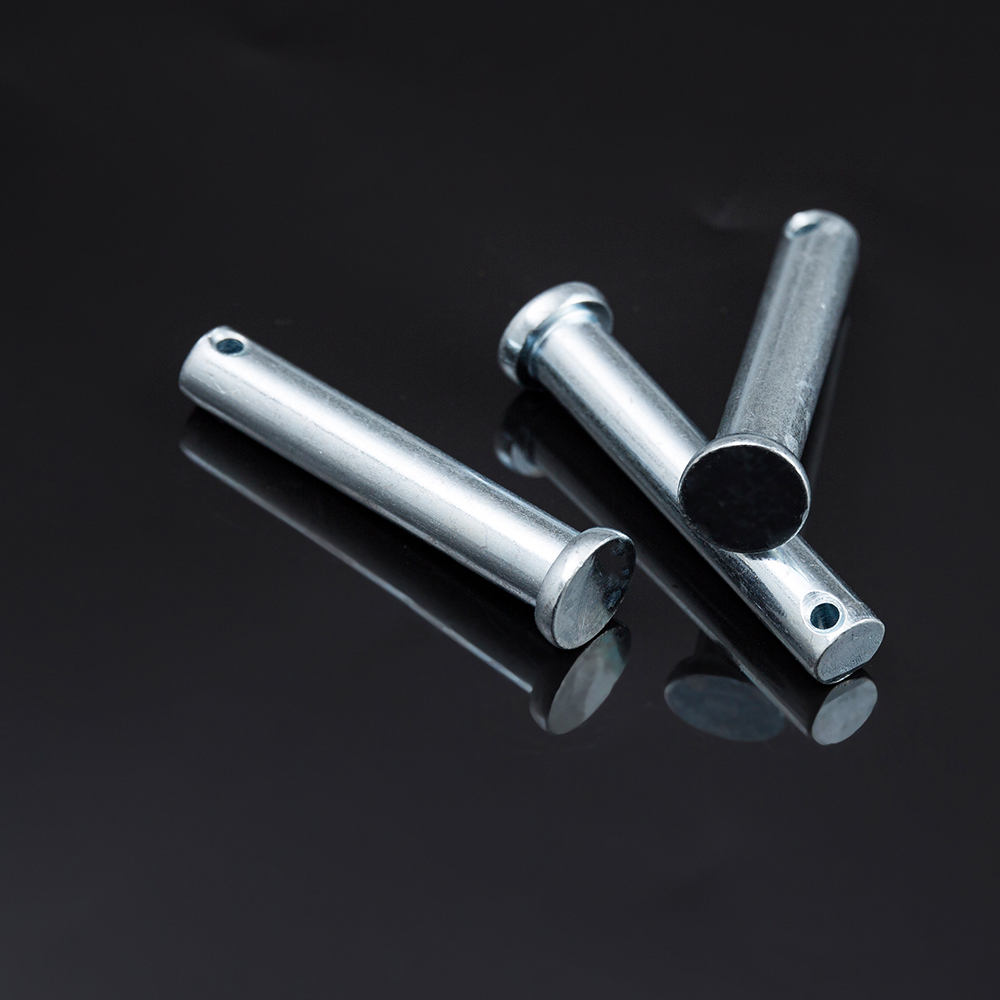

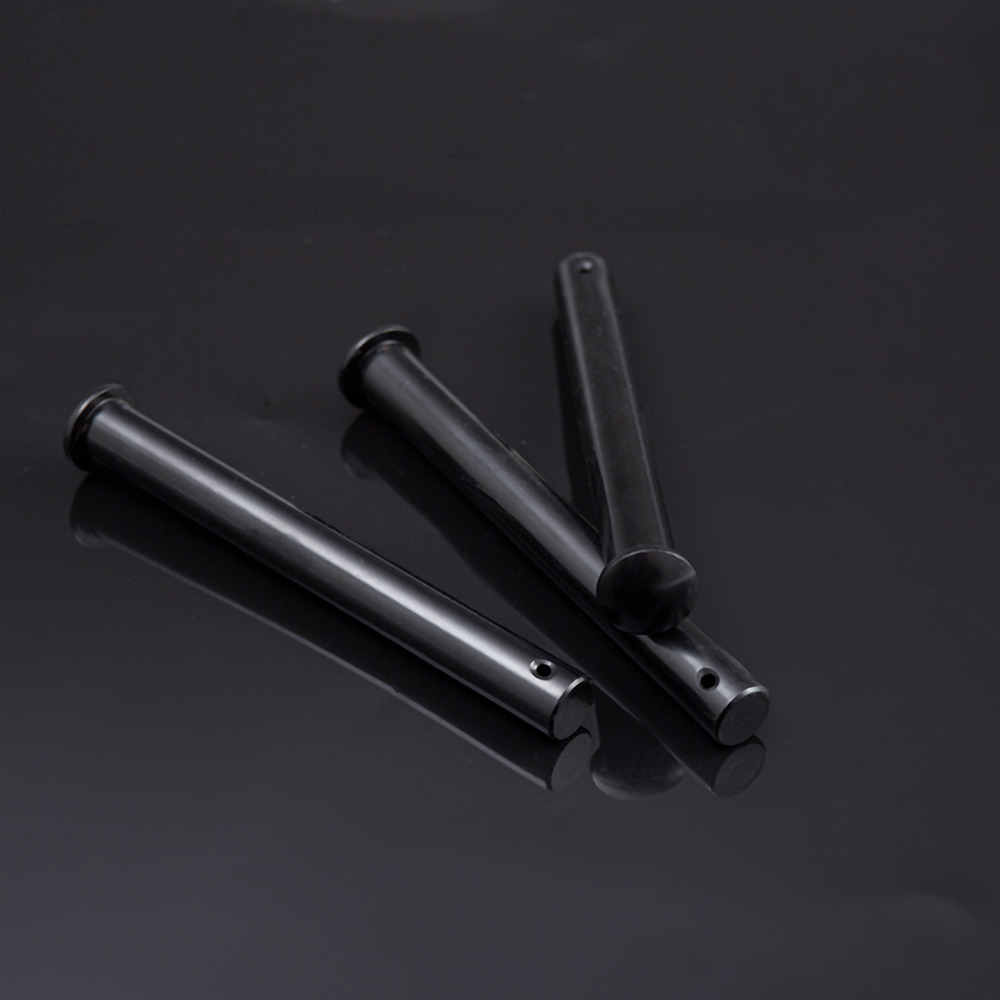

The Clevis Pin with Hole is a precision-engineered fastener designed for secure, removable connections in clevis linkages and pivot assemblies. Featuring a transverse hole at one end, it allows for positive retention with a cotter pin or spring clip, ensuring the pin remains in place under dynamic loads.
Key Features
Transverse hole for use with cotter pins or spring clips for positive retention.
Precision-machined shank for smooth, low-wear pivot connections.
High-strength construction for heavy-load mechanical linkages.
Easy to install and remove for assembly, adjustment, and maintenance.
Available in various lengths and diameters for custom applications.
| Grade | Carbon Steel (5.8 / 8.8) / Stainless Steel 304 / 316 |
| Size Range | Ø3–Ø50mm (custom lengths available) |
| Standards | DIN 1443 / DIN 1444 / ISO 2341 |
| Style | Clevis pin with hole/clevis pin with groove (for cotter pin) |
| Material | Carbon Steel / Alloy Steel / Stainless Steel 304 / 316 |
| Surface Finish | Plain / Zinc Plated / Black Oxide / Passivated |
| Hardness | HRB 80–220 (grade-dependent) |
| Operating Temperature | -40°C ~ 250°C (material-dependent) |
| Features | High shear strength, secure locking with a cotter pin |
| Application | Linkage assemblies, machinery, lifting equipment, and agricultural implements |
Applications
Automotive linkages, construction equipment, agricultural machinery, and industrial pivoting assemblies.
